307 West Fork Drive, Arlington, TX 76012 (817) 460-6221 FAX 817-274-9581
E-mail: sales@acprodrive.com Web: www.acprodrive.com

Since 1973
WTG&S, Inc.
AC Pro Drive

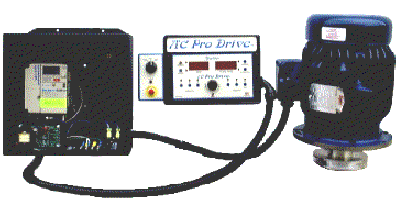

KITS
* * * Featuring renowned products and EASY installation * * *
Yaskawa
Baldor
Inverter Drive
Super E Motor
Specially designed for the
AC Prodrive
EASY
Installation !
WTG&S, Inc., 307 West Fork Drive, Arlington, Texas 76012 - (817) 460-6221 - fax (817) 274-9581
E-Mail: sales@acprodrive.com Web: www.acprodrive.com
U.S. Patent No. 5914881
Made in U.S.A.
TM
Just
Install spindle pulley and belts.
Install motor pulley and motor.
Connect motor wire.
Hookup primary power.
Information needed for specific machine installation:
TM

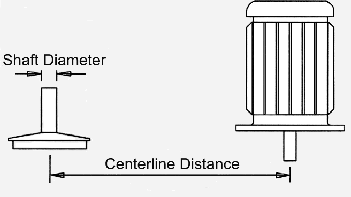

Front shaft diameter _______

Centerline distance _______

Machine hp ________

Spindle type _______
Input voltage _______

High RPM range: Hi ___ Lo ___

Low RPM range: Hi ___ Lo ___

Machine make & model _______
Information needed for specific machine installation:
ALL NECESSARY HARDWARE AND INSTRUCTIONS ARE INCLUDED:
Four (4) screws to mount the inverter enclusure,
Two (2) bolts to mount the Baldor motor,
Two (2) bolts to mount ProDrive controller with two (2) electrical plug-in connectors.
Specific belts & pulleys are also included for proper installation.
> > Discounts available to Machinery Dealers and Rebuilders > >
